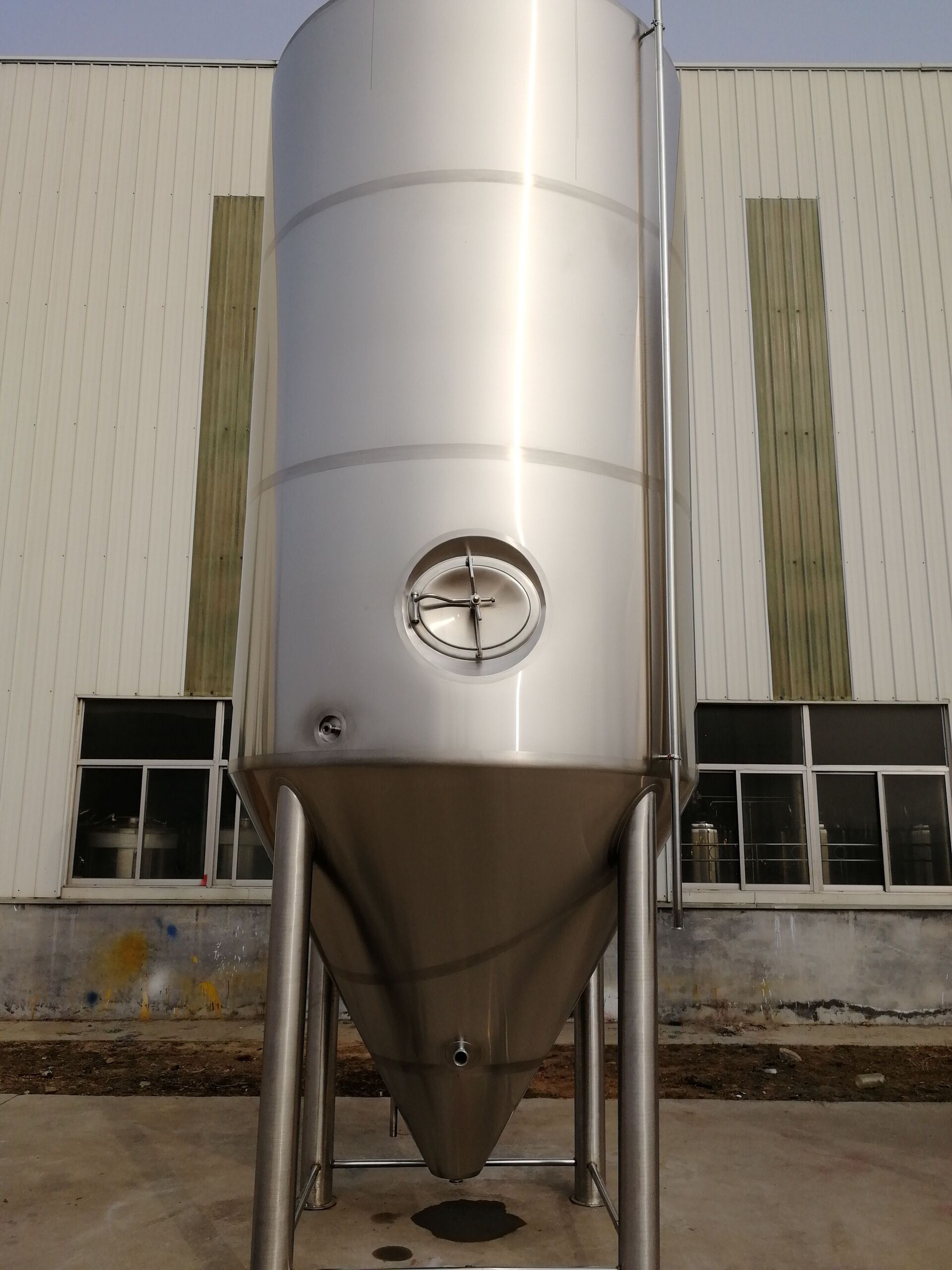

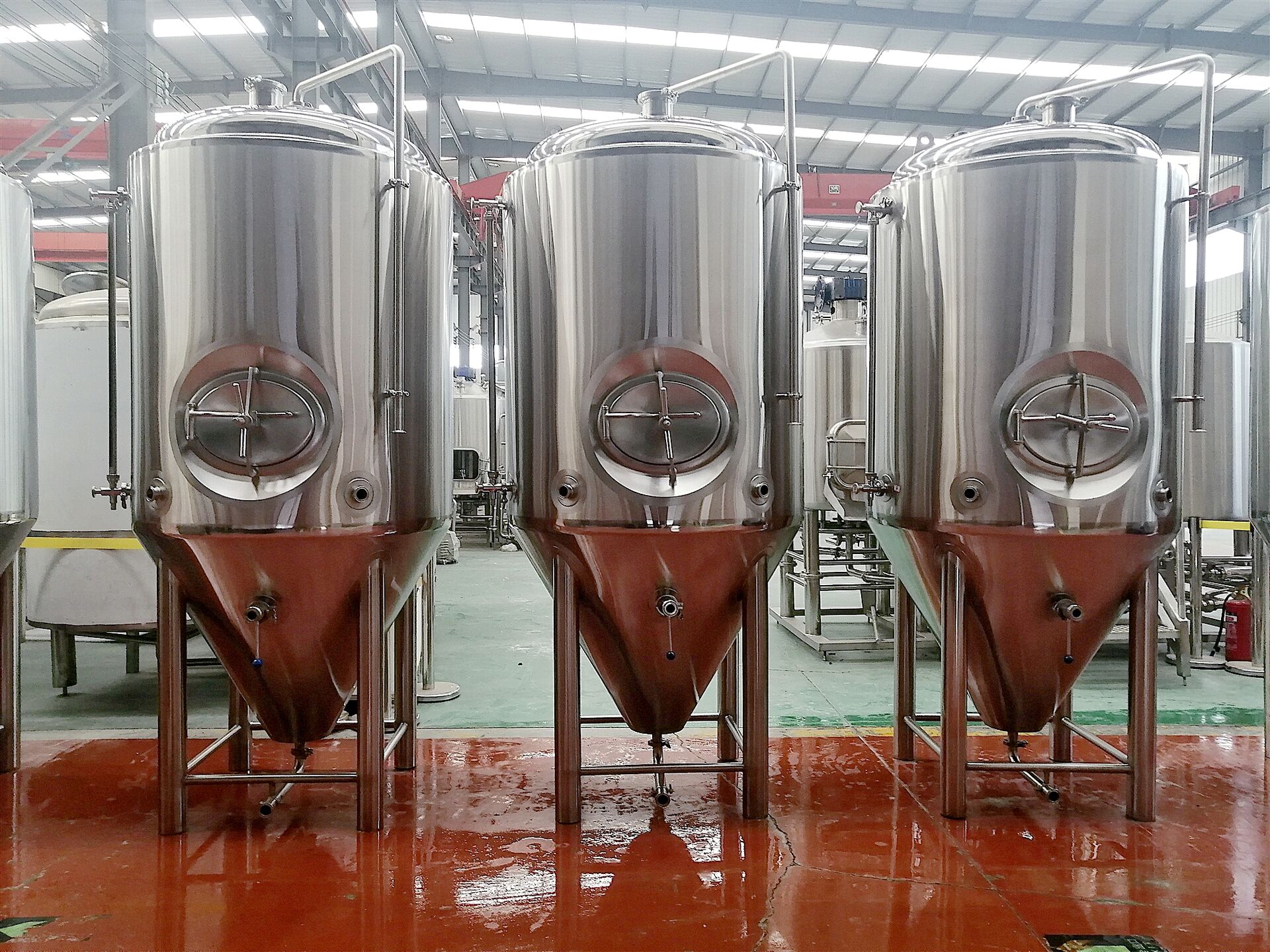

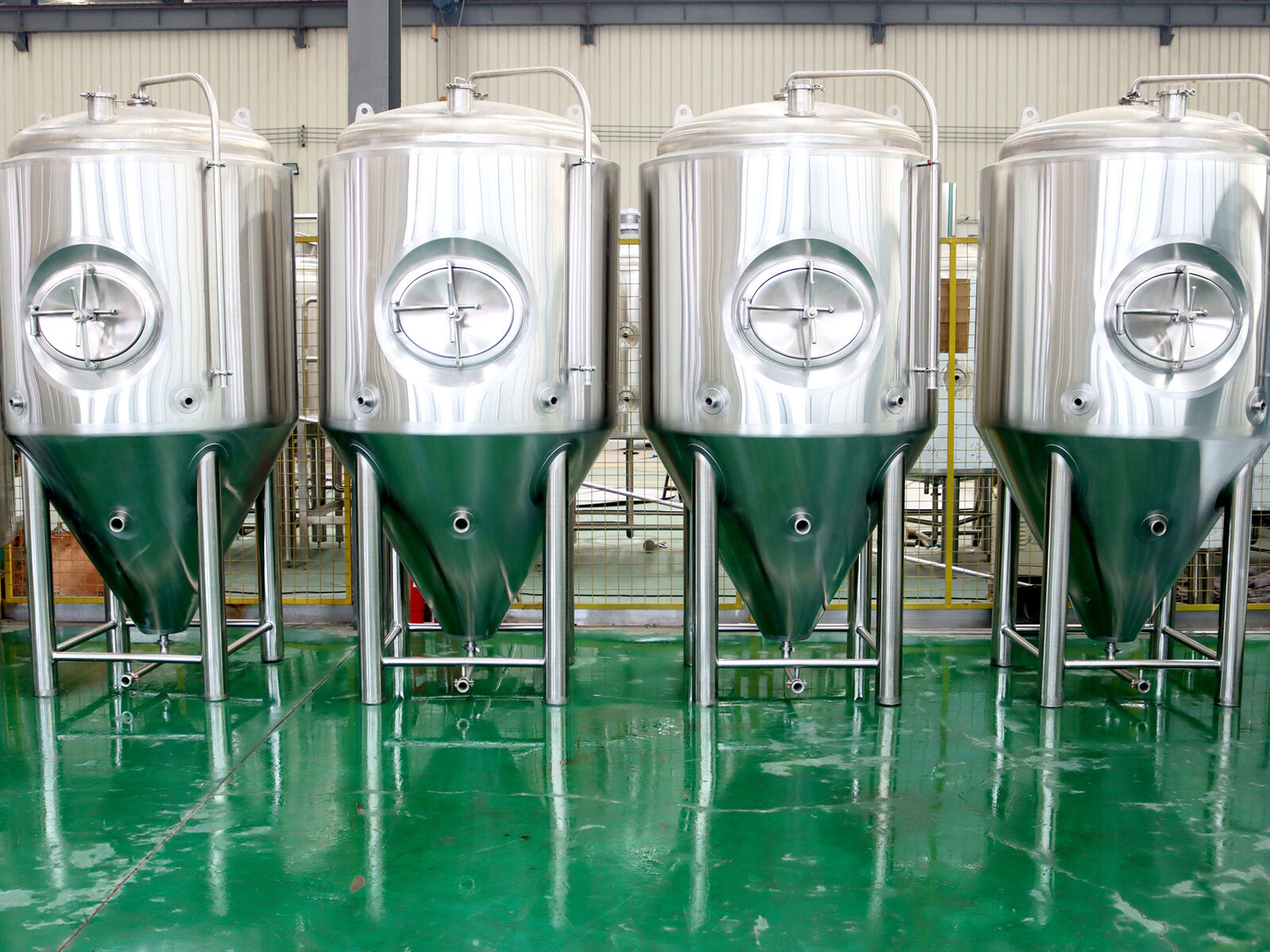

Fermentation Tank

Fermentation Tank

-Craft beer fermenter is a key component of any craft beer brewing system.
-The conical beer fermentation tank precisely controls the fermentation process (10–30 days).
-Jacketed fermenters impact both beer production capacity and final flavor profile.
-Automatic temperature control via a glycol cooling system ensures stable fermentation.
-Available in sizes from 100L to 5000L to suit microbreweries and large-scale breweries.
-Made from food-grade stainless steel with optional carbonation and dry hopping ports.
-CE, ISO, PED, and UL certified, with durable design for long-term brewery operation.
Ask For Price
Specification

Fermenter Volume

100L to 20,000L

Raw Material

SUS304/316

Insulation

PU

Working Pressure

0.3Mpa/3Bar

Warranty

5 years

Mawway

Side/Top

Cone Degree

60°

Welding

TIG

Internal Surface Finish

Acid washed and passivated to 0.4um

Separate Cooling Area

Yes

Level Tube

Yes

Pressure Gauge

Yes

Sample Valve

Yes

Pressure Relief Valve

Yes

Isotonic Hops Adding Device

Yes

Safety Valve

Yes

Carbonation Stone

Yes

LD BREWERY EQUIPMENT

Feel freel to tell us all your ideas, Such as production capacity, room area, beer taste, budget, etc, Craft beer  Brewery will be customized accordignly.
