250L Microbrewery Brewing System – Compact SUS304 Turnkey Craft Beer Equipment

‹

250L Microbrewery Brewing System – Compact SUS304 Turnkey Craft Beer Equipment

›

‹

  • 250L Microbrewery Brewing System – Compact SUS304 Turnkey Craft Beer Equipment
  • 250L Microbrewery Brewing System – Compact SUS304 Turnkey Craft Beer Equipment
  • 250L Microbrewery Brewing System – Compact SUS304 Turnkey Craft Beer Equipment

›

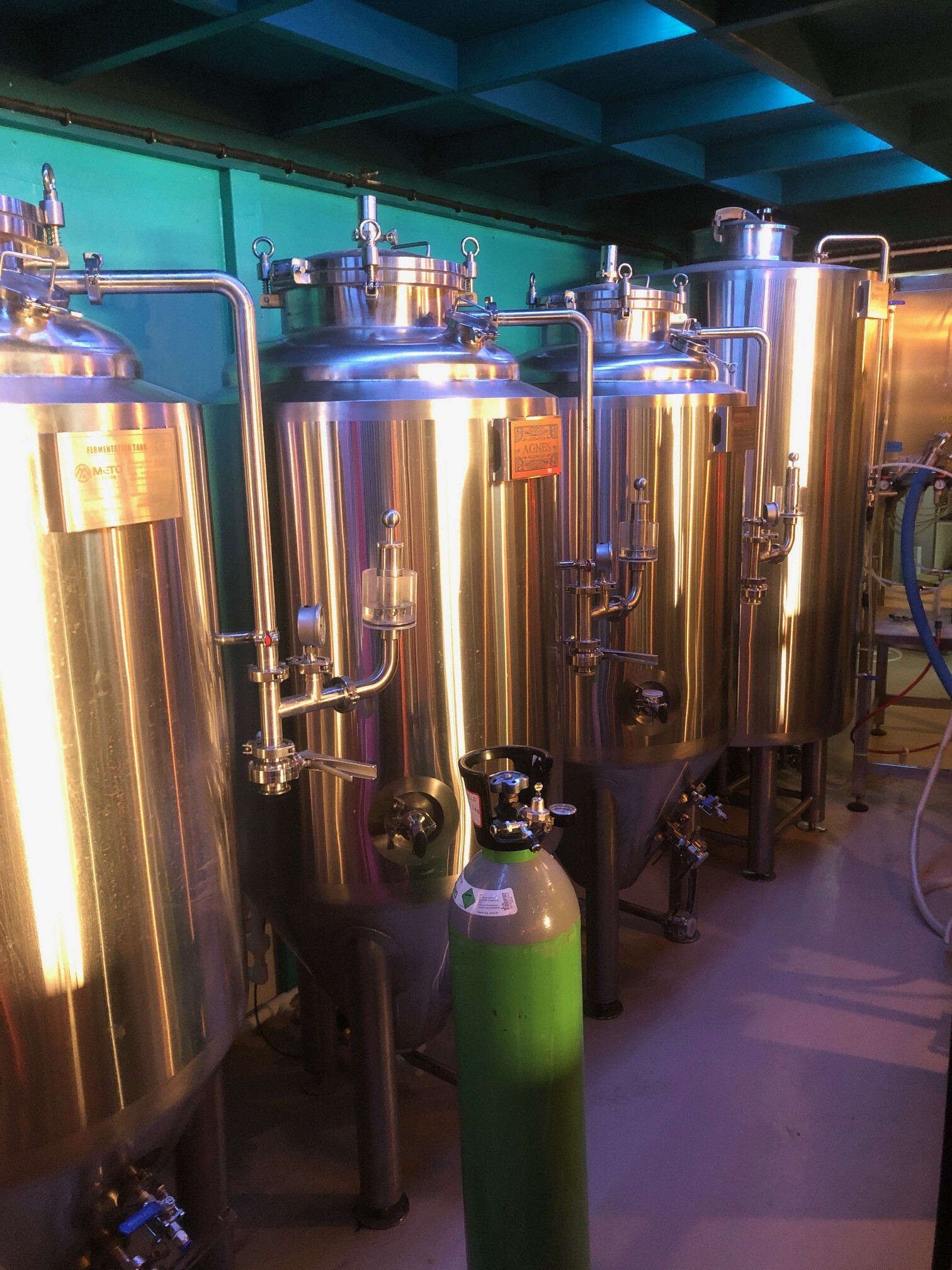

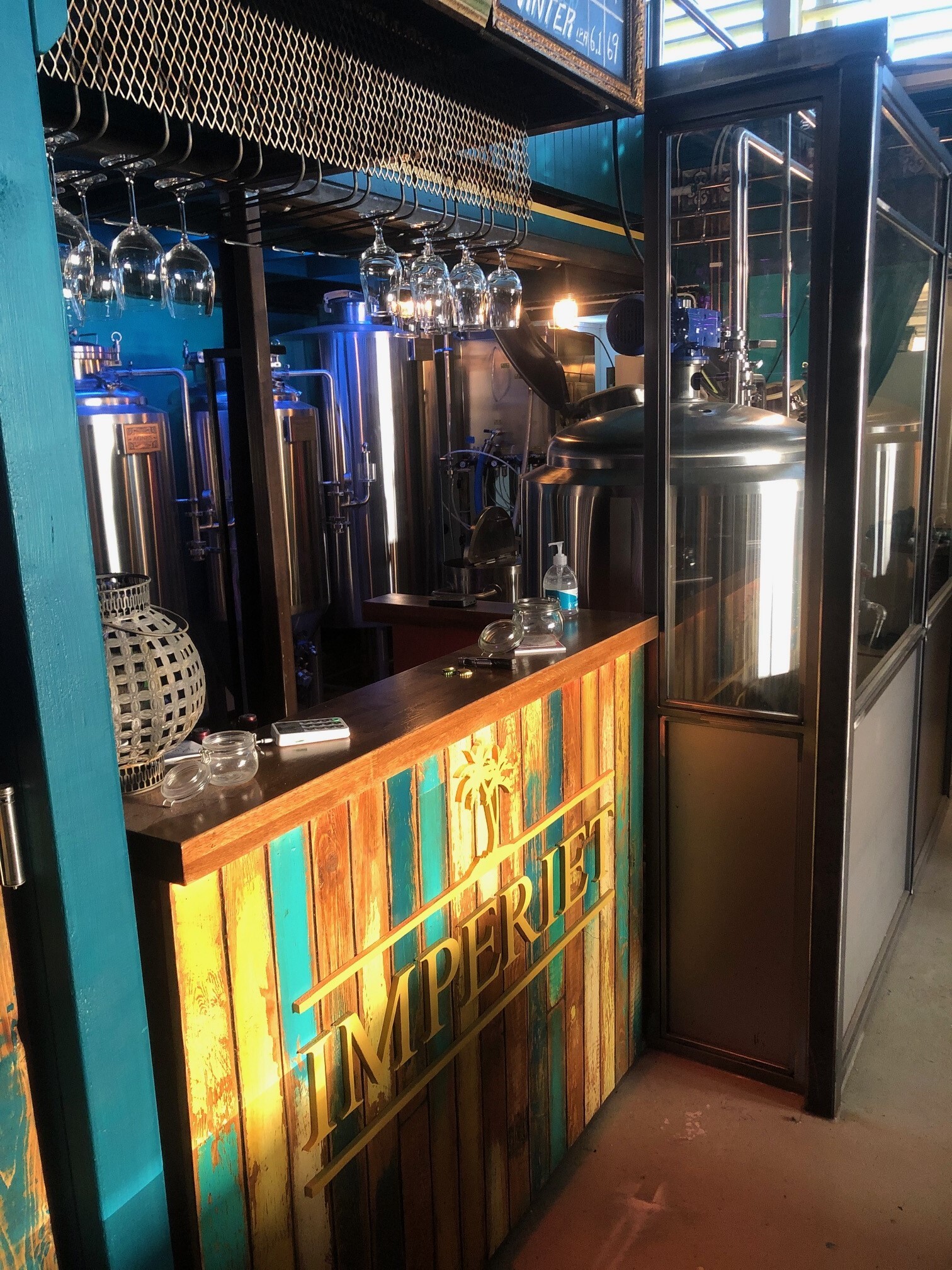

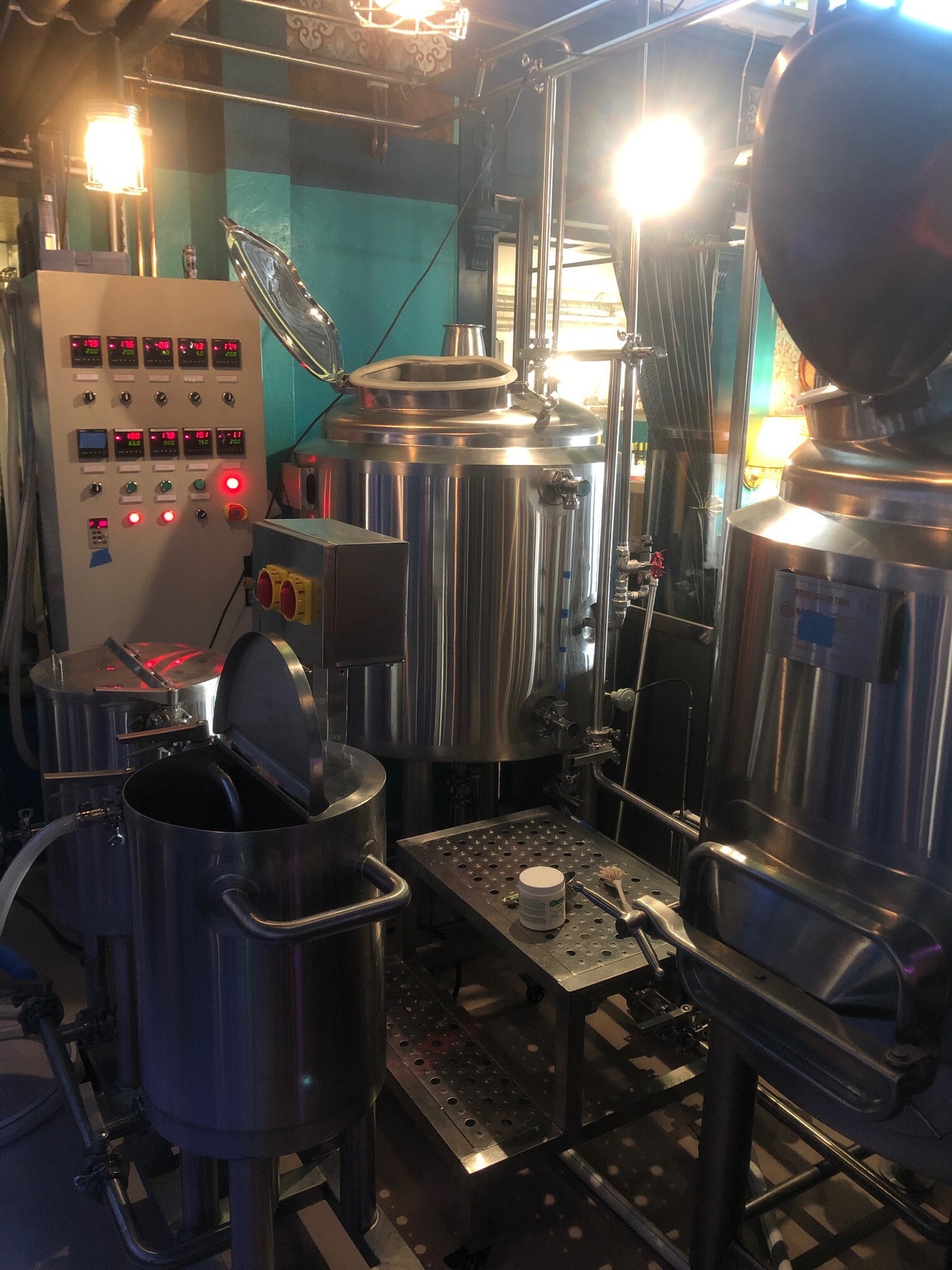

The 250L brewing system is a space-saving microbrewery setup for restaurants and small craft beer brands. The SUS304 stainless steel 2-vessel brewhouse pairs with jacketed 250L beer fermenters, insulated HLT/CLT, 2-stage plate chiller, CIP cart, and digital/PLC control. Designed for consistent wort quality, fast knock-out, and hygienic cleaning, this turnkey brewery system reduces energy and water usage via heat recovery. With tri-clamp sanitary piping, VFD pumps, and inline oxygenation, the 250L craft beer brewing equipment enables reliable small-batch production and easy expansion to more fermenters or packaging lines.
Feedback
Contact Us
Specification

ComponentSpecifications & FeaturesIncluded / Options
Mill & Grist2-roller mill 120–200 kg/h; 0.6 m³ grist case; magnet; dust coverScrew auger optional
Brewhouse250L 2-vessel (MLT + K/W); electric or electric-steam; PU insulation 60–80 mm; glass manwaysSteam boiler mini optional
Mash/LauterWedge-wire 0.7–0.9 mm; rake with VFD optional; under-back (grant) with sight glass; sparge ringTorque sensor optional
Kettle/WhirlpoolEvaporation 6–8%/h; tangential whirlpool; steam condenser optionalHop dosing, trub dam
PumpsWort pump 1.1–1.5 kW (VFD); hot water pump 0.75 kWSecondary pump optional
HX & Oxygenation2-stage plate HX (CLT → glycol); oxygenation stone with flow meter; temp & flow displayDO meter optional
HLT / CLTHLT 500L + CLT 500L; insulated; level indicator; CIP supportAuto top-up valves
Fermenters4 × 250L CCTs; 60° cone; PRV; sample; CIP arm; carb stone port; 2–3 bar designTop/side manway
Cooling600–800L glycol tank; 3 HP chiller; −1 to −4 °C outlet; insulated SS/PPR pipesN+1 chiller optional
CIP2×50L tanks; 3–5 kW heater; sanitary pump; temp gauge; quick couplingsHeated return loop optional
ControlDigital PIDs; alarms; PLC HMI optional (recipes, logging)Remote support
UtilitiesPower 3-phase; water 1.5–2.0 m³/brew; CO₂ & air 0.6–0.8 MPaWater softener optional
Materials & FinishSUS304, inner Ra ≤0.4 μm; brushed exterior; TIG; PU insulation; food-grade gaskets316L upgrade
QA/DocsCE wiring; pressure test certificates; P&ID; layout; user manualsFAT with wort water test
Delivery50–65 daysEXW/FOB/CIF available
PackingFilm + steel frame; small units in wooden crates; fits 1×20GPCorner protectors, labels
WarrantyTanks 5 yrs; auxiliaries 1 yr; lifetime support; on-site install & trainingSpare parts kit

LD BREWERY EQUIPMENT

Feel freel to tell us all your ideas, Such as production capacity, room area, beer taste, budget, etc, Craft beer  Brewery will be customized accordignly.
