300L Craft Beer Brewing Equipment – Complete Turnkey Microbrewery System



Home > Others, SEO用，网站不要显示 > 300L Craft Beer Brewing Equipment – Complete Turnkey Microbrewery System

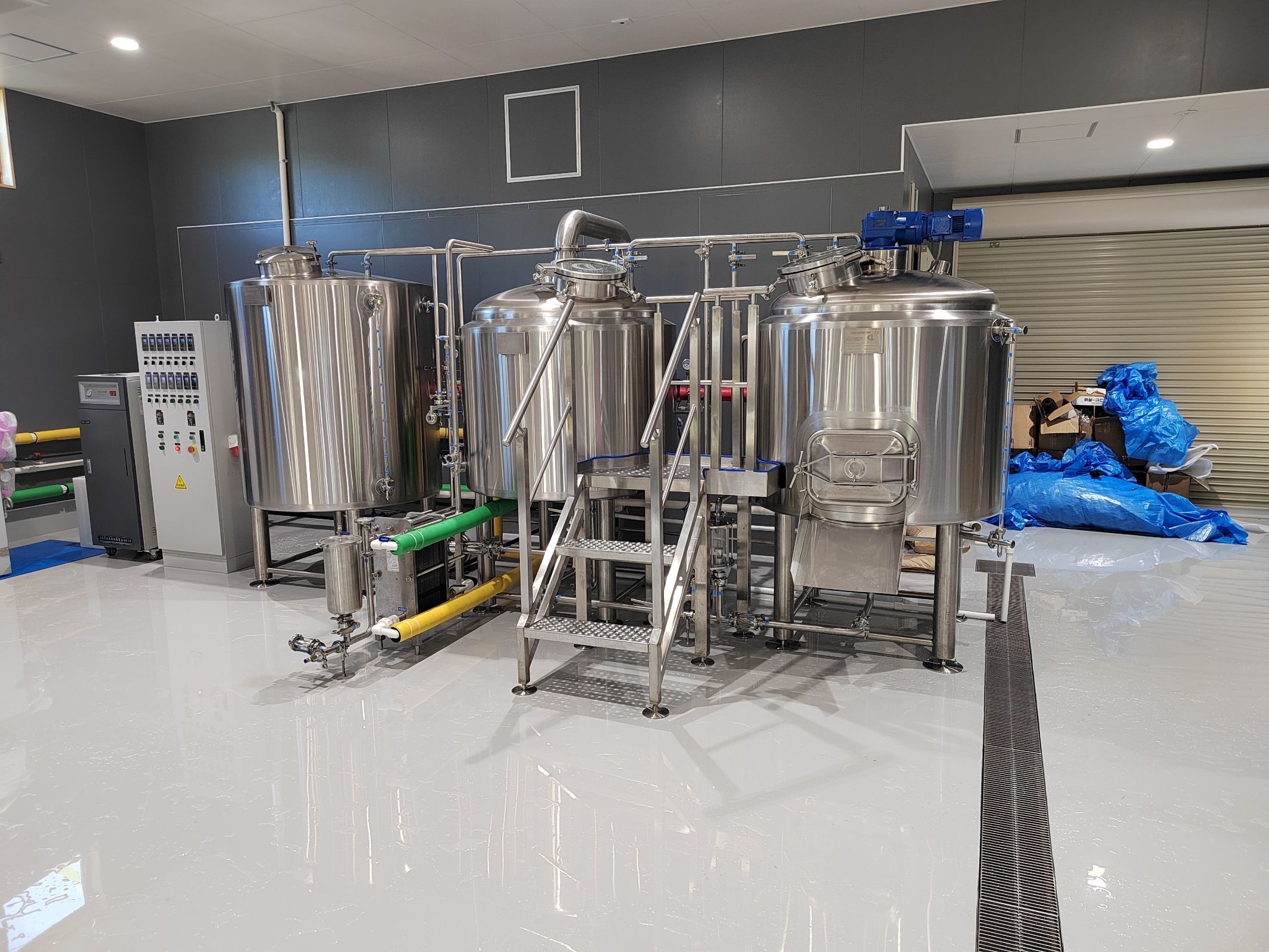

The 300L craft beer brewing system is a professional turnkey solution for brewpubs, restaurants, and small breweries. It includes a malt milling unit, a 2-vessel brewhouse, 4 × 300L fermenters, glycol cooling system, CIP cleaning cart, and a digital control cabinet. All tanks are constructed with SUS304 stainless steel, featuring PU insulation, sanitary finish, and precise temperature control. Compact yet efficient, this 300L brewery system is CE-certified and designed for consistent beer quality, easy cleaning, and energy-saving operation. Perfect for small-scale commercial brewing or pilot production.

Feedback

Specification

Component	Specifications & Features
Malt Milling System	200–300 kg/h, adjustable rollers, SUS304 frame, low-noise gearbox, iron-removal magnet
Brewhouse (300L)	2-vessel: Mash/Lauter Tun + Kettle/Whirlpool, electric heating 20kW, SUS304, PU insulation
	VFD-controlled wort pump, CIP spray balls, manual spent grain outlet
Hot Water Tank	500L, SUS304, electric heating, insulated, supports brewing & cleaning

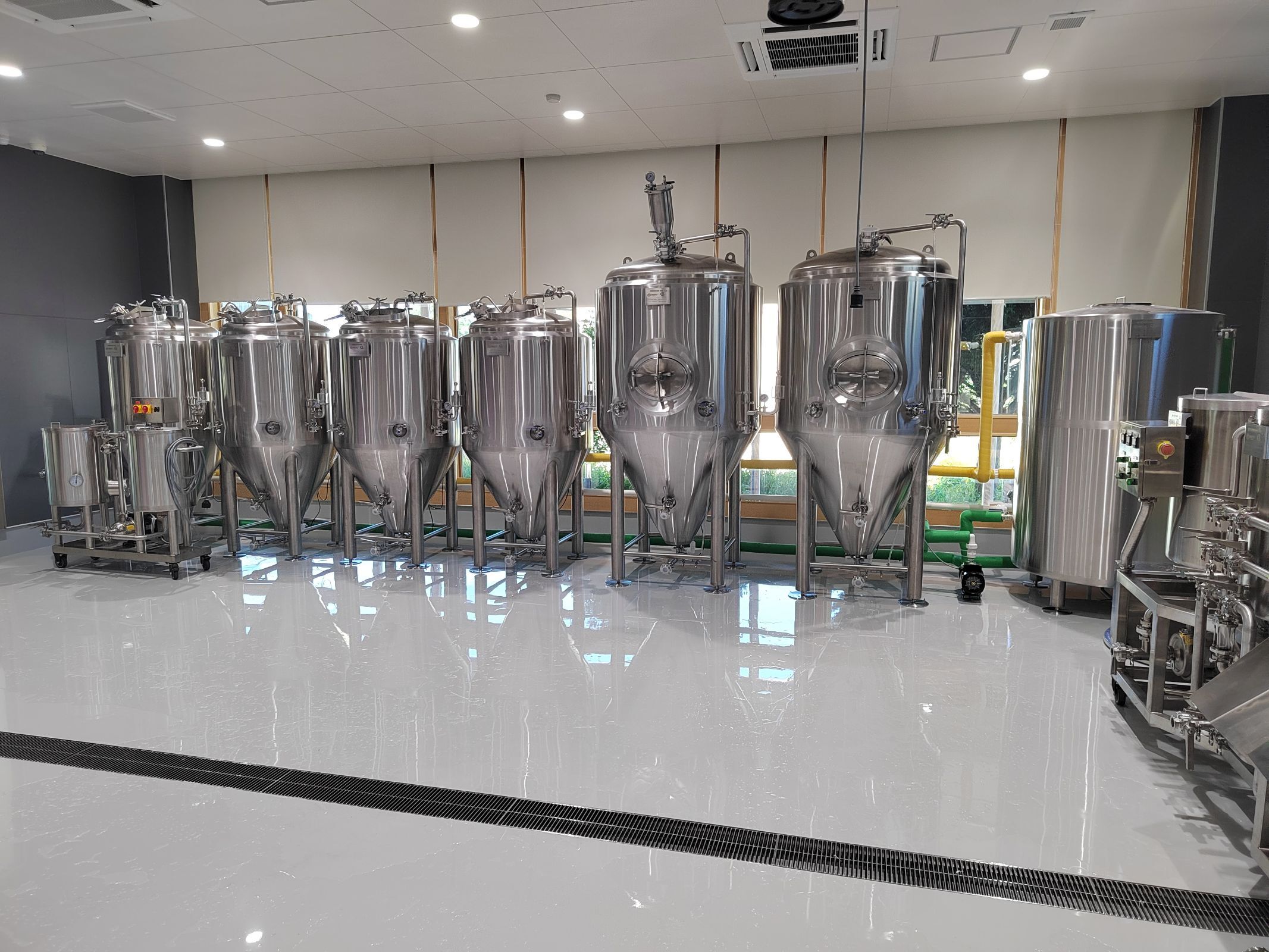

Fermentation System	4 × 300L fermenters, 60° cone bottom, glycol cooling jackets, pressure relief valve, sample port
Cooling System	800L glycol tank, 3HP air-cooled chiller, insulated pipelines with pumps
CIP Cleaning Unit	2 × 50L tanks (acid & caustic), 3kW heater, stainless steel trolley with centrifugal pump
Control System	Digital cabinet, temperature monitoring, pump & motor control, optional PLC touchscreen
Bottling (Optional)	Semi-automatic 4-head filler/capper, labeling machine, air compressor
Material Standard	All tanks SUS304 stainless steel, 0.4μm polish, PU insulation, 100% TIG welding
Warranty	5 years on tanks, 1 year on auxiliary parts, lifetime technical support
Service	Layout design, on-site installation & training, long-term after-sales support

LD BREWERY EQUIPMENT

Feel freel to tell us all your ideas, Such as production capacity, room area, beer taste, budget, etc, Craft beer Brewery will be customized accordignly.
