500L Craft Beer Brewing Equipment – Complete Turnkey Microbrewery System

500L Craft Beer Brewing Equipment – Complete Turnkey Microbrewery System

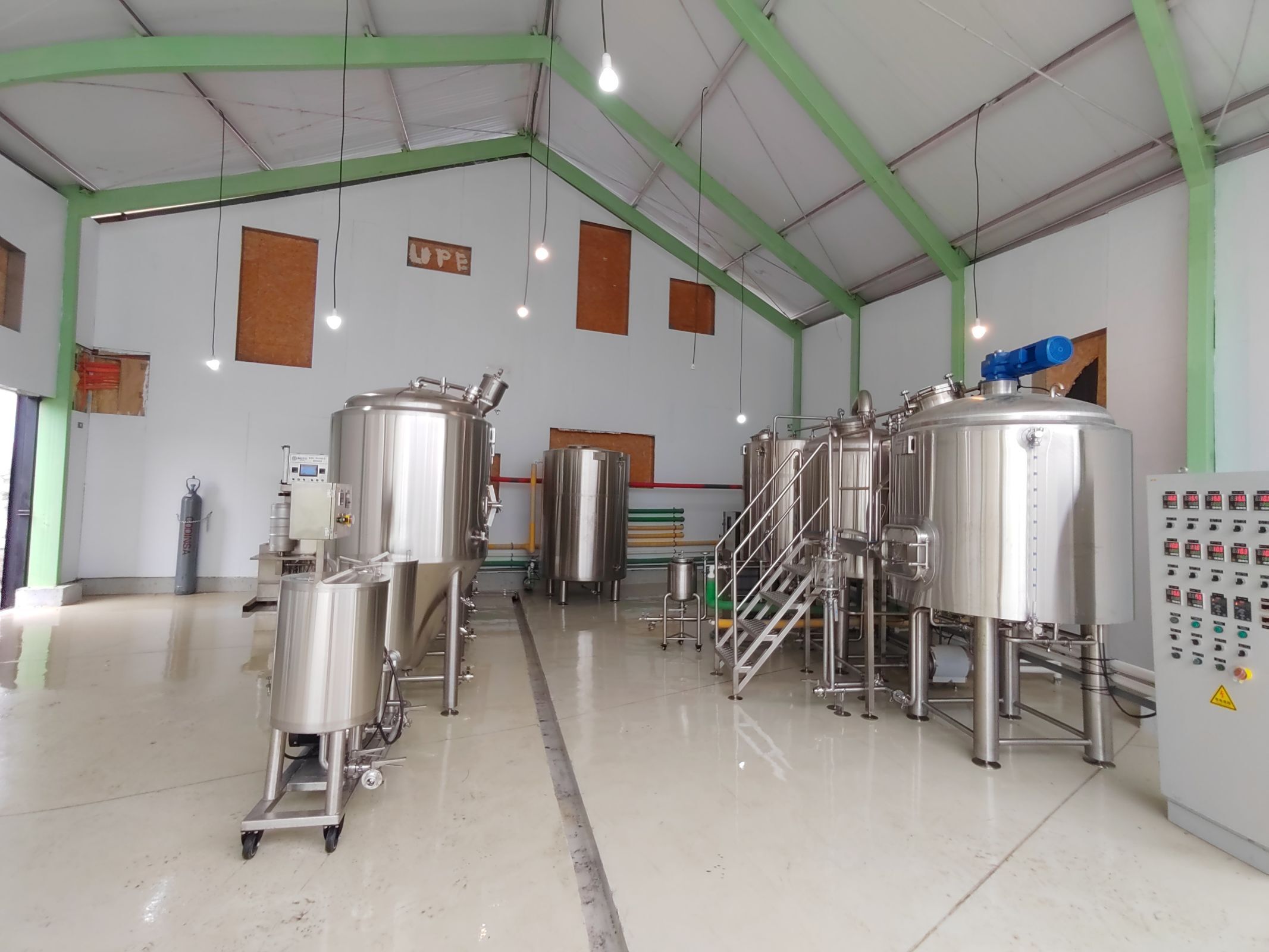

This 500L craft beer brewing equipment is a complete turnkey solution designed for microbreweries and brewpubs. It includes a two-vessel brewhouse, four fermenters, glycol cooling system, CIP unit, electric steam boiler, and semi-automatic bottling line. All tanks are made from food-grade SUS304 stainless steel with precise temperature control and durable insulation. Perfect for starting a professional beer production line with optional PLC automation and global on-site installation support. CE-certified and built for stable, long-term use.
Feedback
Specification
ComponentSpecification & Features
Malt Milling UnitCapacity: 200–300 kg/h, SUS304 frame, low-noise gearbox, adjustable rollers, strong magnet

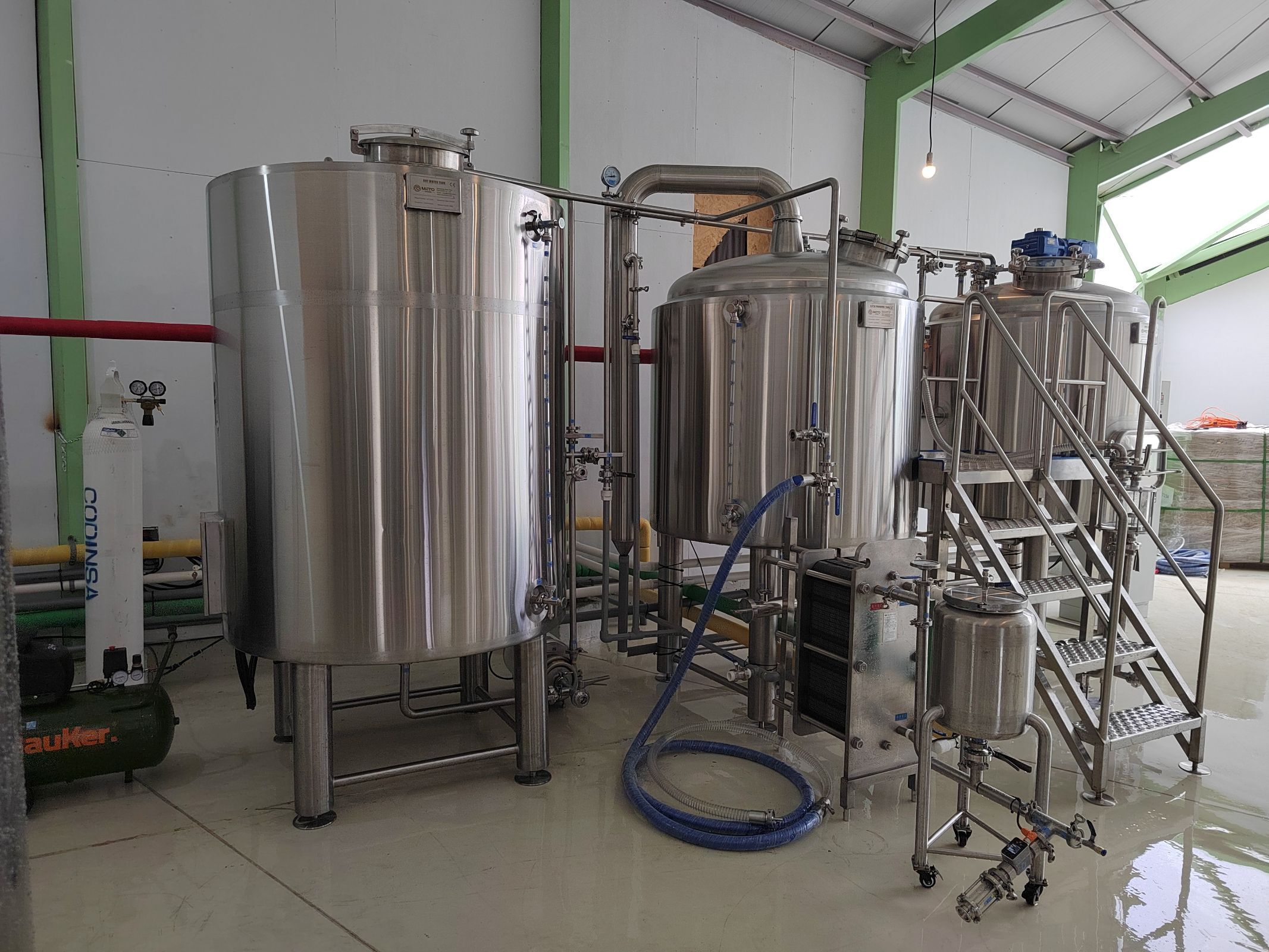

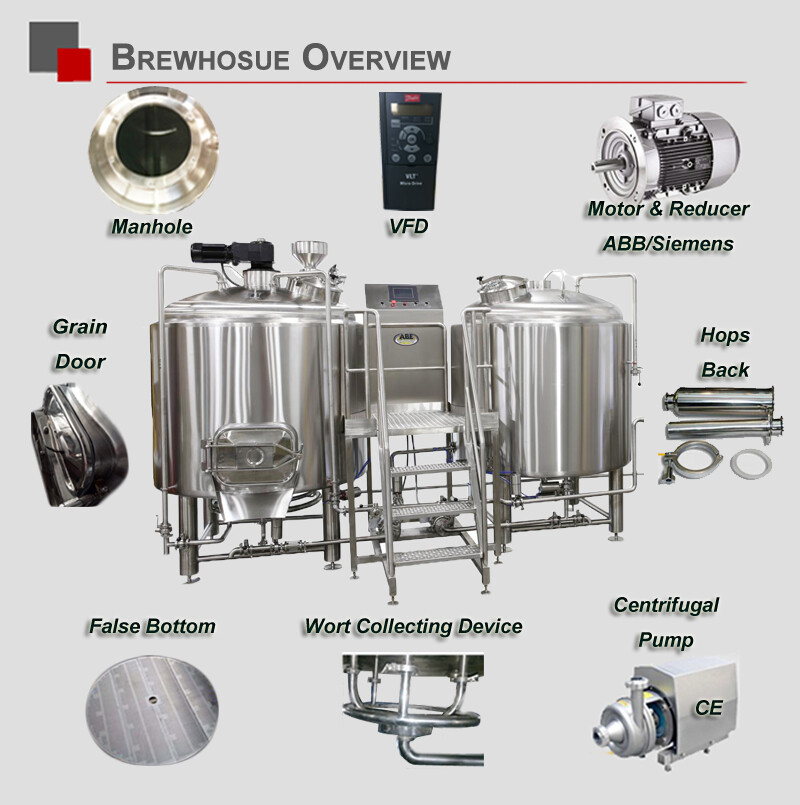

Brewhouse System

Two-vessel (Mash/Lauter + Kettle/Whirlpool), 500L per tank, SUS304, steam heating, CIP system


Heating speed: 1℃/min, Manual spent grain removal, VFD-controlled wort pump

Hot Water TankCapacity: 800L, SUS304, PU insulation, steam heating

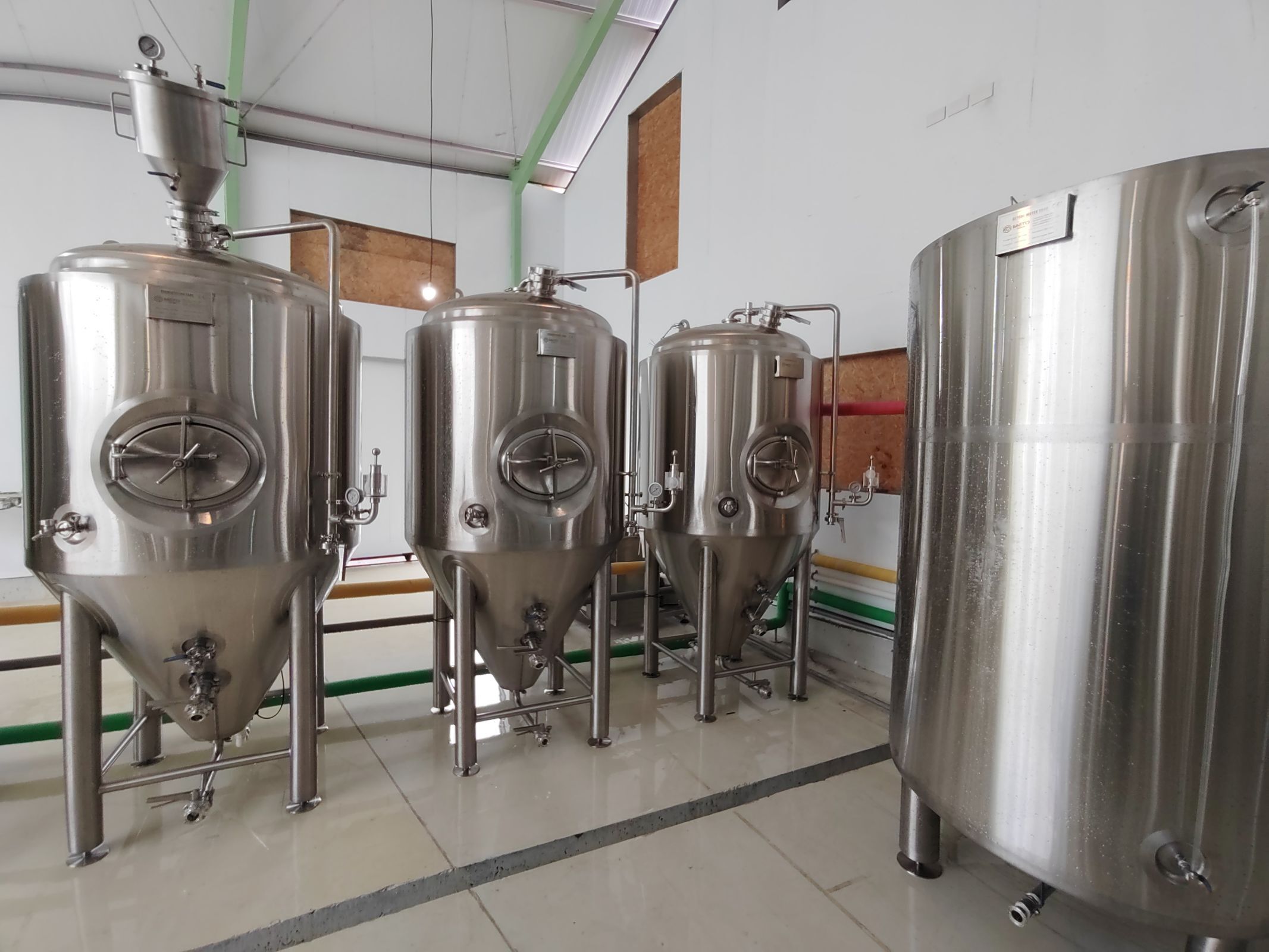

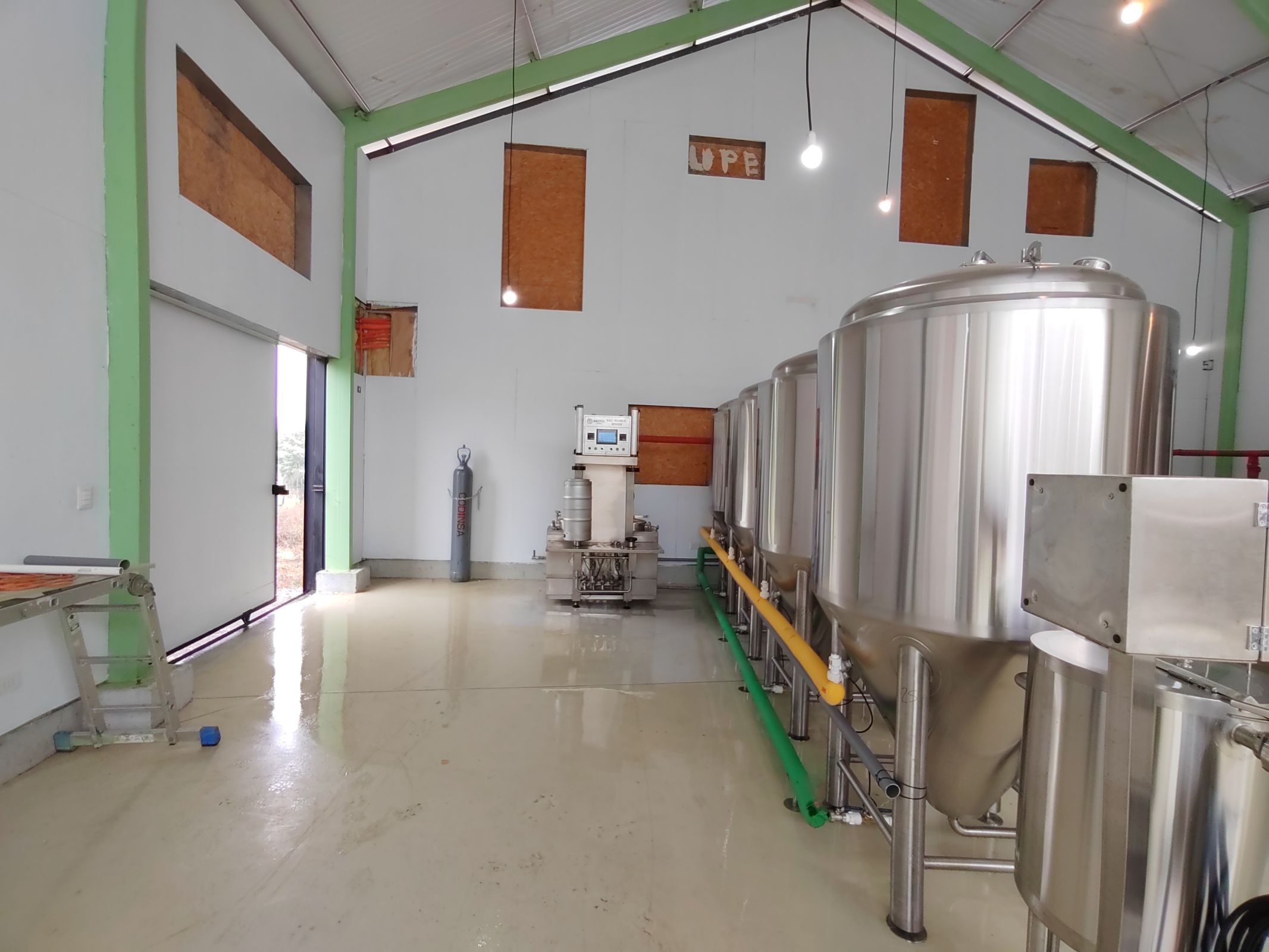

Fermentation Tanks4 × 500L, 60° conical bottom, cooling jacket, pressure relief valves, CIP ball, SUS304
Glycol Cooling System1500L glycol tank, 5HP air-cooled chiller, -5℃ output, insulated pipelines with labels
CIP Cleaning Unit2×50L tanks (acid & caustic), 3kW electric heater, stainless steel trolley, digital control
Electric Steam BoilerPower: 36kW, Output: 52kg/h steam, Efficiency: 98%, Brand: Huazheng, CE certified
Bottling Line6-head filler + 6-head capper, for 330ml & 500ml bottles, labeling machine, date printer
Material StandardAll tanks and piping: SUS304 stainless steel, Mirror-polished inside 0.4μm, PU insulation
Control SystemDigital control cabinet (floor type), optional PLC touchscreen, temperature & pump control
Warranty5 years for tanks, 1 year for accessories, lifetime technical support
Installation SupportOn-site installation, commissioning, and training available worldwide
ApplicationsMicrobreweries, brewpubs, craft beer startups, restaurant breweries
