500L Automatic Craft Beer Brewing System – PLC Controlled Brewery Equipment

500L Automatic Craft Beer Brewing System – PLC Controlled Brewery Equipment

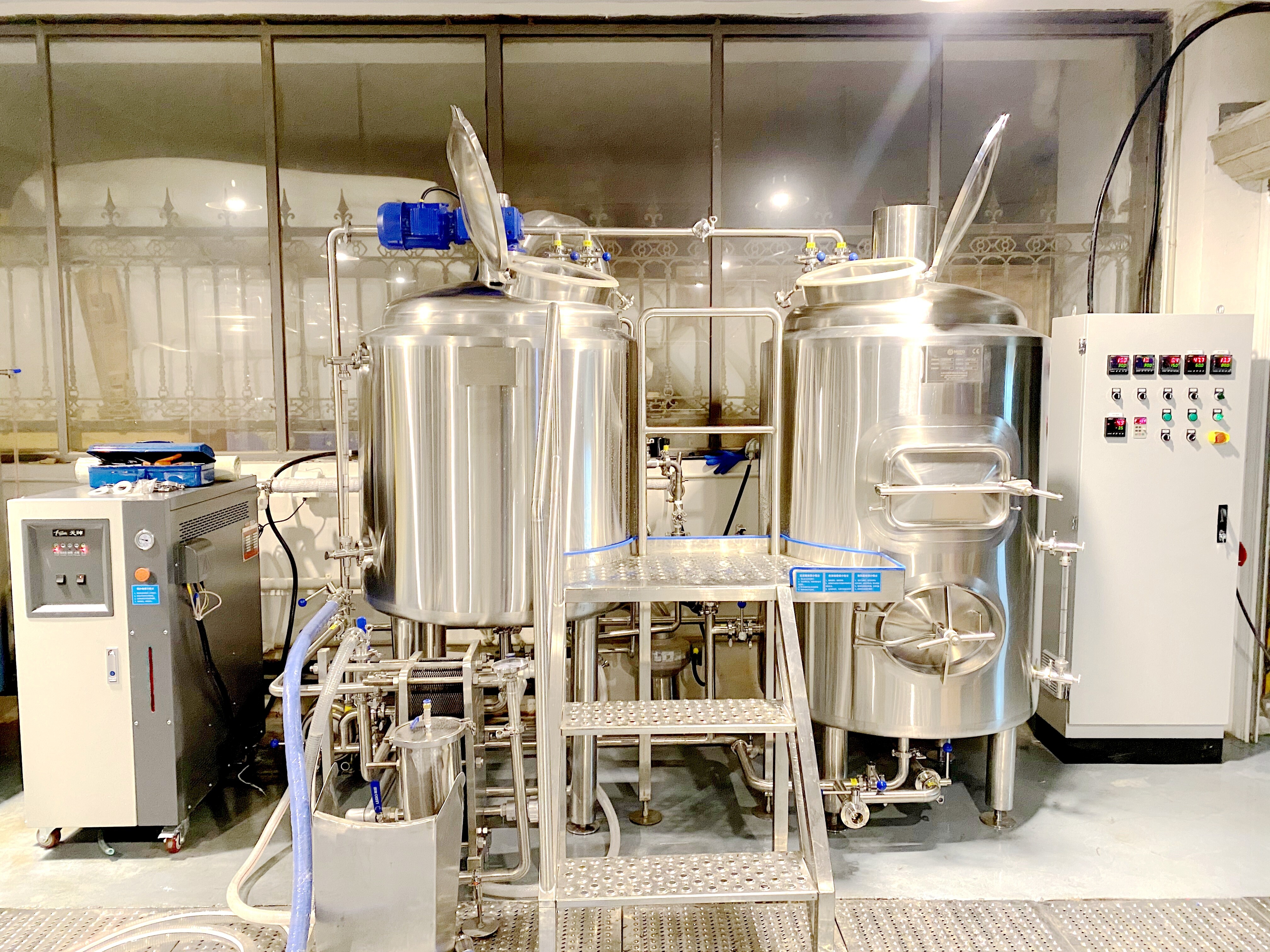

The 500L PLC-controlled brewing system delivers automation for modern breweries. With Siemens PLC touchscreen controls, brewers can store recipes, monitor brewing data, and automatically regulate temperature and pumps. This system includes a 2-vessel brewhouse, 4 × 500L fermenters, glycol cooling, CIP, and bottling. Built with SUS304 stainless steel, the equipment is CE-certified and designed for breweries that need efficiency, consistency, and reduced labor in daily operations.
Feedback
Specification

ComponentSpecifications & Features
Brewhouse (500L)Semi-automatic, steam-heated, Siemens PLC touchscreen integration, automatic pump & agitator control
Fermenters4 × 500L with automatic temp sensors, glycol jackets, sample valves, dry hop port
Cooling System1500L glycol tank, auto-pump switching via PLC, 5HP chiller
CIP UnitAutomated cleaning cycles, 50L × 2 tanks, pump integrated into PLC control
Boiler36kW electric steam boiler with auto water feed and pressure protection
ControlSiemens PLC, touchscreen, Wi-Fi remote access optional
Bottling LineSemi-automatic filler & capper, optional upgrade to fully automatic
MaterialFood-grade SUS304, polished inside Ra 0.4μm, insulated, CE-certified
ApplicationBreweries requiring automation, reduced labor, and consistent brewing
