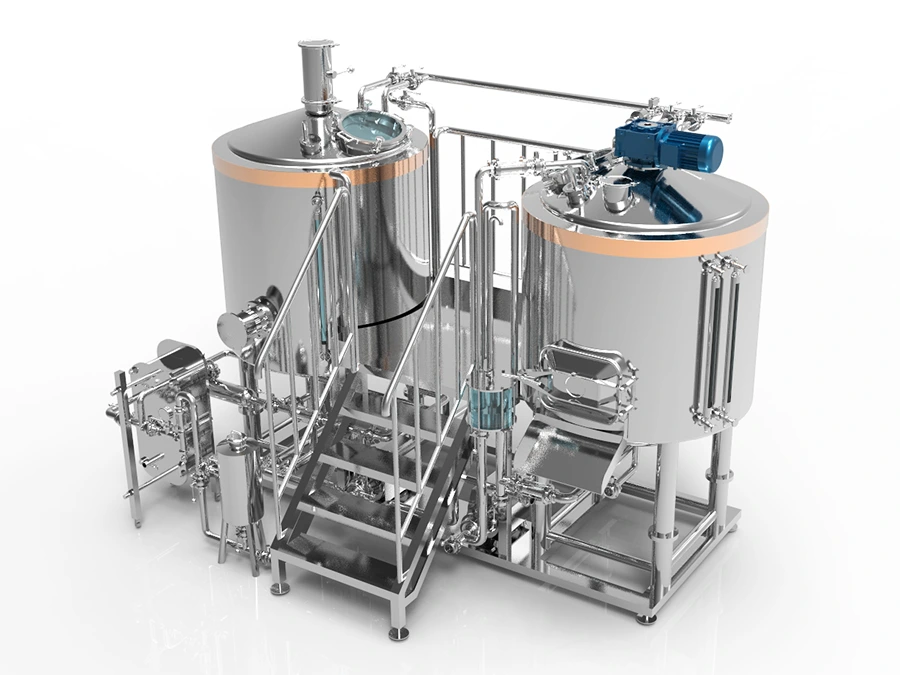

500L 5BBL NanoBrewery Beer Brewery Equipment System Solutions

‹

500L 5BBL NanoBrewery Beer Brewery Equipment System Solutions

›

‹

›

-Brewing Capacity: 500L/Batch;
-Brewing Batch: 1-2 brew/day;
-Fermenter Volume: 500L/1000L;
-Fermenter Quantity: 4-8 pcs;
-Supply Capacity: 125L-500L/Day;
-Power: 15-70kw;
-Required Area: 35m²;
-Equipment Height: 9.8ft(3m);
Feedback
Specification

We are Factory, which supplies 200L–5000L Brewery Equipment.

Our engineers can travel to your brewery for equipment installation and on-site training.

Tell us your requirements, we will provide a customized brewery design and quotation.


Professional 500L Brewery Equipment for Brewpubs, Restaurants & Startup Craft Breweries

A 500L brewery system is one of the most popular solutions for brewpubs, restaurants, hotels, and startup craft breweries because it offers the perfect balance between investment cost, production capacity, and future expansion.


At Shandong LD Machinery Co., Ltd., we design and manufacture turnkey 500L brewery equipment that combines premium quality, reliable performance, and flexible customization.


Whether you are launching your first brewery or expanding your current brewing business, our engineering team can help you build a brewing system that perfectly matches your production goals.


Complete 500L Brewery Equipment Solution

500L Brewery System:

• Brewing capacity: 500L/batch
• Brewhouse: 500L, Mash/Lauter Tun + Kettle/Whirlpool, can also be 3 vessels or 4 vessels.
• Hot Liquor Tank: 800L
• Fermenters: 4–6 * 500L, standard configuration
• Glycol chiller: 5HP
• Glycol tank: 1500L
• CIP tank: 50L
• Malt mill: 200kg/h
• Control: PID / PLC, semi-auto or fully auto
• Material: SUS304, SUS316 optional
• Installation area: about 35 m², Room Height 3m, customizable
• Interior polishing: Ra ≤ 0.4 μm

•Maximum Wort Concentration: 33°Plato.

•Complete brewing system supplied, including all piping, valves, pumps, motors, and accessories. The customer only needs to provide water, electricity, and brewing ingredients.


Who Is a 500L Brewery For?

A 500L commercial brewery is suitable for Startup Craft Breweries, Brewpubs, Restaurants, Hotels, Taprooms, Pilot Brewing Facilities, Beer Research Centers, University Brewing Programs.


500L brewery is one of the most popular model.

You do not necessarily need to brew every day. A schedule of 3–4 batches per week can provide a practical production rhythm while leaving time for beer packaging, sales, customer service, and daily business operations.


A 500L brewery can also be expanded by adding more fermentation tanks when beer sales increase.


  Contact us today to receive a customized brewery proposal and quotation.



How Much Beer Can a 500L Brewery Produce?


ConfigurationRecommended Production

500L Brewhouse + 4 × 500L Fermenters

Up to 4,000 L/month

500L Brewhouse + 5 × 500L Fermenters

Up to 5,000 L/month

500L Brewhouse + 6 × 500L Fermenters

Up to 6,000 L/month

Production capacity can be further increased by adding more fermentation tanks or increasing the brewing frequency. Our engineers will recommend the most suitable tank configuration based on your beer styles, fermentation cycle, and expected annual production.


If you are planning to expand in the future, we can also design your 500L brewery with additional space and utilities reserved for more fermenters, allowing you to increase production without replacing your brewhouse.

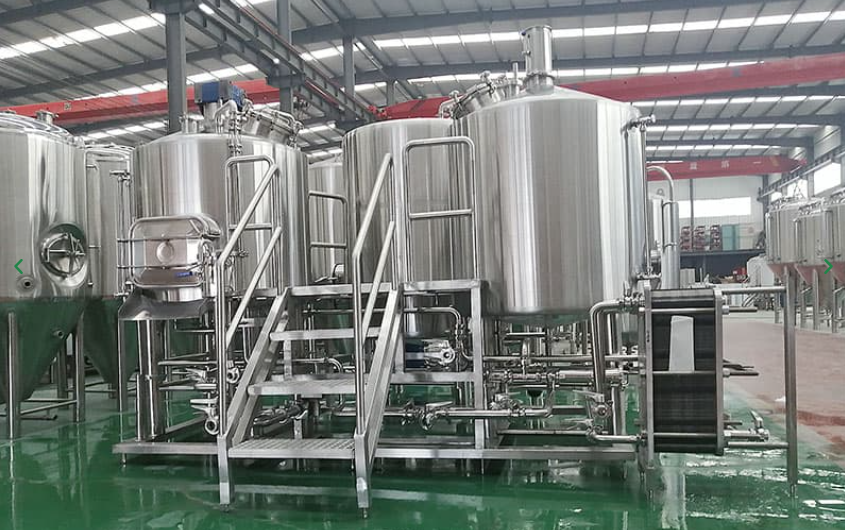

1000L-Brewhouse

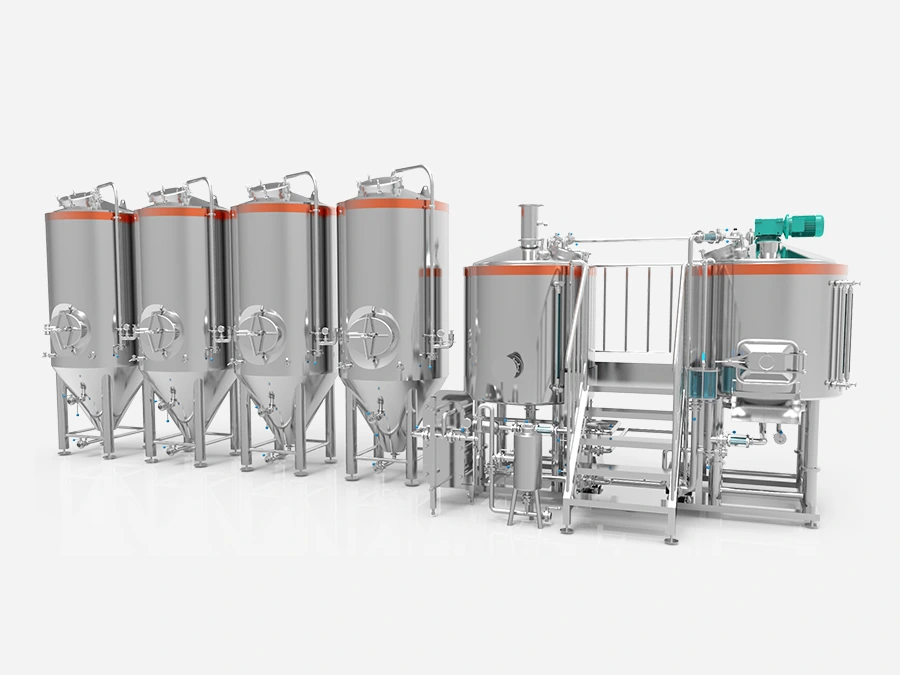

Complete 500L Brewery Equipment

500L Brewhouse

2 Vessels: Mash/Lauter Tun + Kettle/Whirlpool

3 Vessels: Mash Tun + Lauter Tun + Kettle/Whirlpool

4 Vessels: Mash Tun + Lauter Tun + Kettle + Whirlpool

Electric heating  and Steam heating as the common option.

Complete pipeline, platform, pump, motor, PHE, and accessories.


800L Hot Liquor Tank
Normally equipped with approximately 36KW electric heating or steam heating.


500L Fermenters
500L working volume / 625L total volume, 0.2MPa working pressure and 0.4MPa test pressure.

Each tank includes a cooling jacket, independent automatic temperature control, and complete accessories.


Glycol Cooling System
5HP glycol chiller with an 1500L glycol tank.

For fermentation temperature control and wort cooling.


50L CIP System
For cleaning the brewing and fermentation equipment.


Control Panel

Semi-auto control and fully auto control.
PID or PLC control can be supplied according to the customer's requirements.


Malt Mill
200kg/h malt mill for grain preparation.
Auger is optional.


Complete Piping & Platform
Complete brewing system supplied, including all piping, valves, pumps, motors, and accessories. The customer only needs to provide water, electricity, and brewing ingredients.


Heating Options

Electric heating and Steam heating is both the most common choice for a 500L brewery system.

A typical electric configuration requires approximately 73kW total power.

Steam and gas heating are also available for customers with different utility conditions.


The power supply can be customized according to the local voltage and electrical standards.


Built for Different Beer Styles

The 500L system can be used to produce IPA, Pale Ale, Lager, Pilsner, Wheat Beer, Stout, Porter, Belgian Ale, Saison, and other craft beer styles.

Brewing equipment is like a cooking pot, and beer is like a dish. A skilled brewer can use the same equipment to brew many different styles of beer.

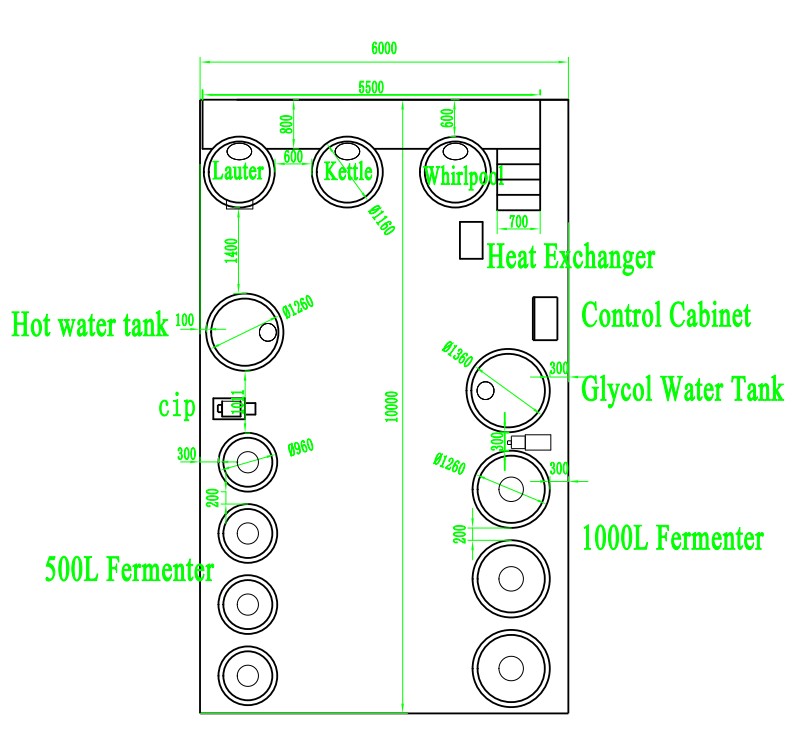

Compact Brewery Layout

A 500L brewery can normally be arranged in a brewing area of around 35 m².

If your space is smaller or has an unusual layout, our engineers can redesign the equipment arrangement according to the actual building.


A minimum ceiling height of approximately 3m is recommended, depending on the final tank and platform design.


We provide brewery layout design before manufacturing, so you can check equipment position, operating space, piping, and utilities in advance.




What We Do for You?

Shandong LD Machinery CO., LTD. is not only a brewery equipment manufacturer.

We provide complete brewery solutions from equipment design and production to shipping, installation, commissioning, and operator training.


We can also supply beer packaging equipment for glass bottles, cans, and kegs, allowing you to build a complete brewing and packaging system from one supplier.


500L Brewery Equipment Price

A complete 500L commercial brewery system is typically around US$30,000-40,000,

The final price depends on the number of fermenters, heating method, automation level, material, packaging equipment, and other customization requirements.


Send us your brewery space, target production, preferred beer styles, and budget. Our engineers can recommend a suitable 500L brewery configuration and prepare a customized quotation.


Why Choose Shandong LD Machinery CO., LTD.?

Choosing the right equipment manufacturer is just as important as choosing the right brewing system.


With years of experience in brewery equipment manufacturing, Shandong LD Machinery has supplied brewing systems to customers worldwide.

We provide:

  • Customized brewery design

  • Turnkey brewery solutions

  • Professional engineering support

  • Factory acceptance testing (FAT)

  • Installation and commissioning

  • Brewing training

  • Lifetime technical support

  • Spare parts service

  • Fast response after-sales support


Our mission is not only to manufacture brewery equipment but also to help customers build successful breweries.

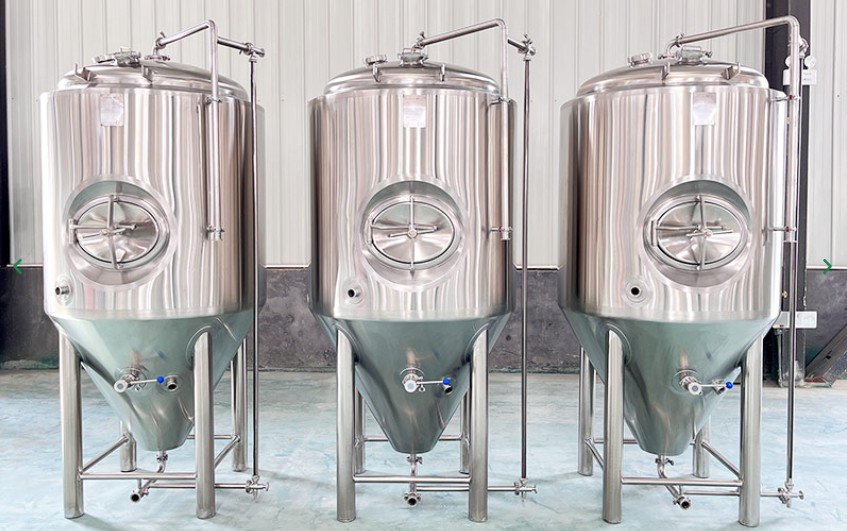

3-Fermentation tank-500L (1)

Optional Equipment

Every brewery is different.

We offer customized options including:

  • Grain Conveyor

  • Hop Dosing System

  • Yeast Propagation Tank

  • Dry Hopping Device

  • Automatic CIP

  • Automated Brewhouse

  • Remote Monitoring

  • Automatic Recipe Management


Request Your Free Brewery Proposal

Planning to start a craft brewery?


Shandong LD Machinery provides customized 500L brewery solutions including:

  • Equipment Configuration

  • Brewery Layout Design

  • Technical Proposal

  • Complete Quotation

Contact us today and let our brewery engineers help you design the right brewing system for your business.


Frequently Asked Questions

How much does a 500L brewery cost?

Normally, price ranges from 30,000-40,000USD. The price depends on the brewhouse configuration, fermentation tank quantity, heating method, automation level, and optional equipment.

Contact us for a customized quotation.


Is a 500L brewery suitable for commercial production?

Yes. A 500L brewery is suitable for brewpubs, restaurants, startup breweries, and small commercial beer production.


How many fermentation tanks are recommended?

Most 500L breweries are configured with 4–6 fermentation tanks depending on production goals.


Can I expand production in the future?

Yes. Additional fermentation tanks can be added to increase production capacity.


Do you provide installation support?

Yes. We provide installation guidance, commissioning support, and technical training.


What is the delivery time?

8 weeks for production.

Total 4-5 months from you pay deposit till you brew first batch of beer.


What warranty do you provide?

5 years for tank, 1 year for others.
