1000L Brewpub Craft Beer System – Copper-Clad Display Brewhouse with BBT & Packaging Line

1000L Brewpub Craft Beer System – Copper-Clad Display Brewhouse with BBT & Packaging Line

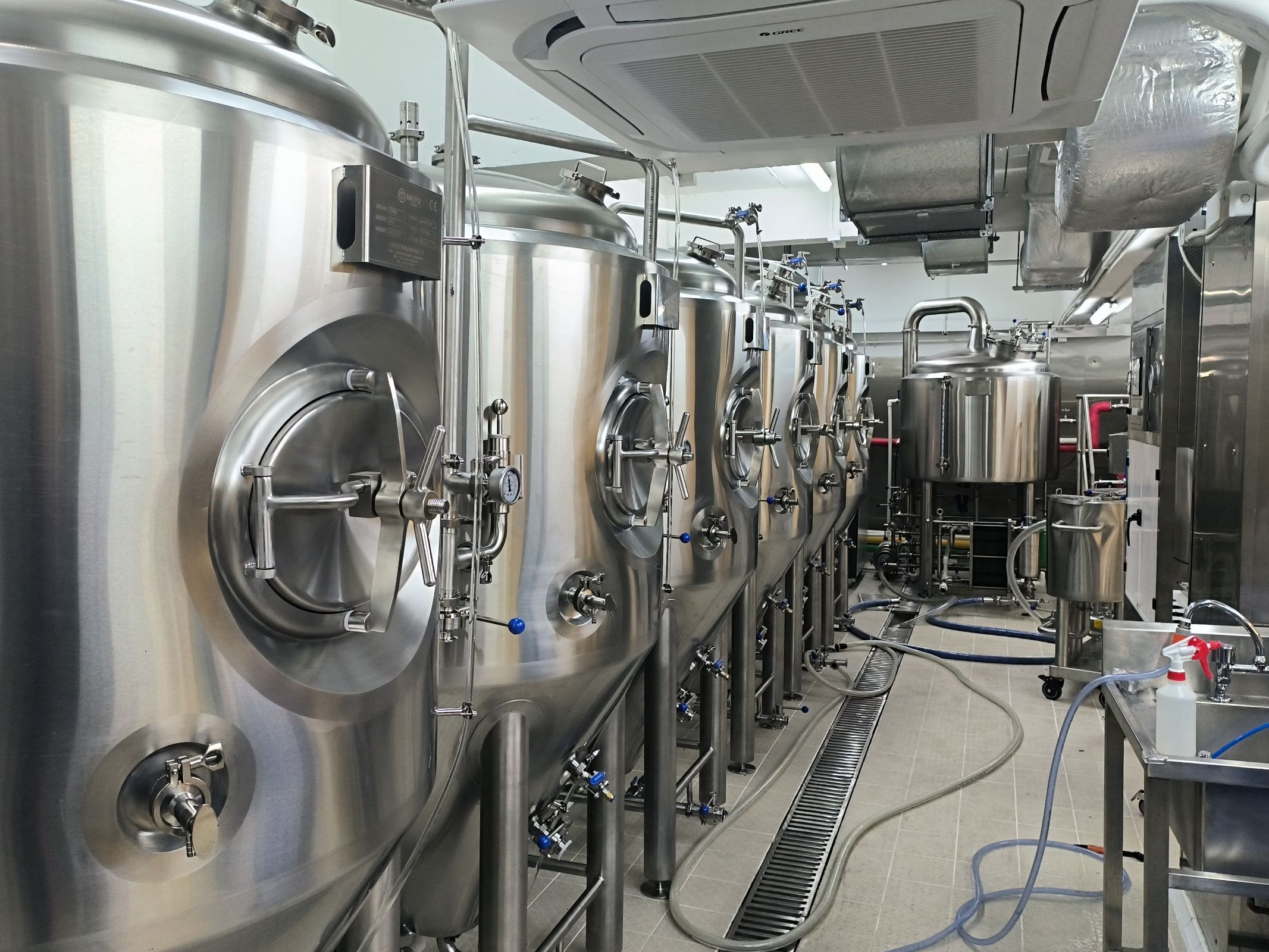

Designed for brewpubs and taprooms, this 1000L craft beer equipment pairs a customer-facing copper-clad two-vessel brewhouse with 6 × 1000L fermenters and bright beer tanks for service. The microbrewery setup includes a 3000L glycol system, CIP station, optional beer filtration, and a bottle/can/keg packaging combination. Built in SUS304 stainless steel, it offers sanitary design, consistent temperature control, and efficient cleaning—ideal for on-site brewing, display, and direct-draw service.
Feedback
Specification

ModuleSpecifications & Features
Display Brewhouse (1000L)Two-vessel copper-clad or polished stainless; steam jackets; glass manways; LED-lit sight glasses; neat pipe routing for front-of-house.
Aesthetics & SafetyDecorative cladding, polished columns, anti-slip platform, guard rails; low-noise pumps; steam condensate management.
Process CoreWedge-wire lauter; rake & plow; whirlpool with tangential inlet; internal CIP balls; turnkey brewery layout optimized for show brewing.
Fermentation6 × 1000L CCTs with jackets, PRV, sample valve, carb stone port; top or side manway based on ceiling height.
BBT / Serving2 × 1000L BBTs, carbonation stone, rotating racking arm, pressure rating for serving; glycol jackets for stable pour.
Cooling3000L glycol tank; 10 HP chiller; insulated distribution; trunk lines to BBT/serving area; drip tray glycol loop (optional).
Filtration (Opt.)Cartridge filter housing (1–5 μm) or DE filter; inline clarity control before BBT.
CIP Station100/100 L heated CIP with sanitary pump; quick couplings in brewhouse and cellar; SOP placards for staff.
ControlsDigital cabinet or PLC for recipe control; taproom reclaim timer; cellar temp alarms; data logging (optional).
PackagingSemi-auto bottle/can filler, labeler, coder; keg washer/filler 2+1 head; CO₂ panel & manifold.
UtilitiesPower per region; gas/e-steam; water supply 2–3 m³/brew; CO₂ & compressed air 0.6–0.8 MPa; drain/slope planning.
BrandingCustom logo plates, cladding color choices, illuminated signage to enhance guest experience.

LD BREWERY EQUIPMENT

Feel freel to tell us all your ideas, Such as production capacity, room area, beer taste, budget, etc, Craft beer  Brewery will be customized accordignly.
