1000L Three-Vessel Craft Beer Brewing System – High-Throughput Microbrewery with CLT & Heat Recovery



Home > Others, SEO用，网站不要显示 > 1000L Three-Vessel Craft Beer Brewing System – High-Throughput Microbrewery with CLT & Heat Recovery

A three-vessel 1000L brewing system engineered for throughput and consistency: dedicated Mash Tun, Lauter Tun, and Kettle/Whirlpool, plus HLT & CLT for two-stage cooling and heat recovery. The microbrewery setup integrates 6 × 1000L SUS304 fermenters, a 3000L glycol plant, automated lauter rake and grain-out, and a CIP system for fast turnaround. With VFD pumps, inline oxygenation, and optional hop dosing, this craft beer equipment supports 3+ brews/day while maintaining high wort clarity and efficient energy use.

Feedback

Specification

Module	Specifications & Features
Malt Handling	500 kg/h mill; 1.5 m³ grist case; optional load cells; mash hydrator for even wetting.

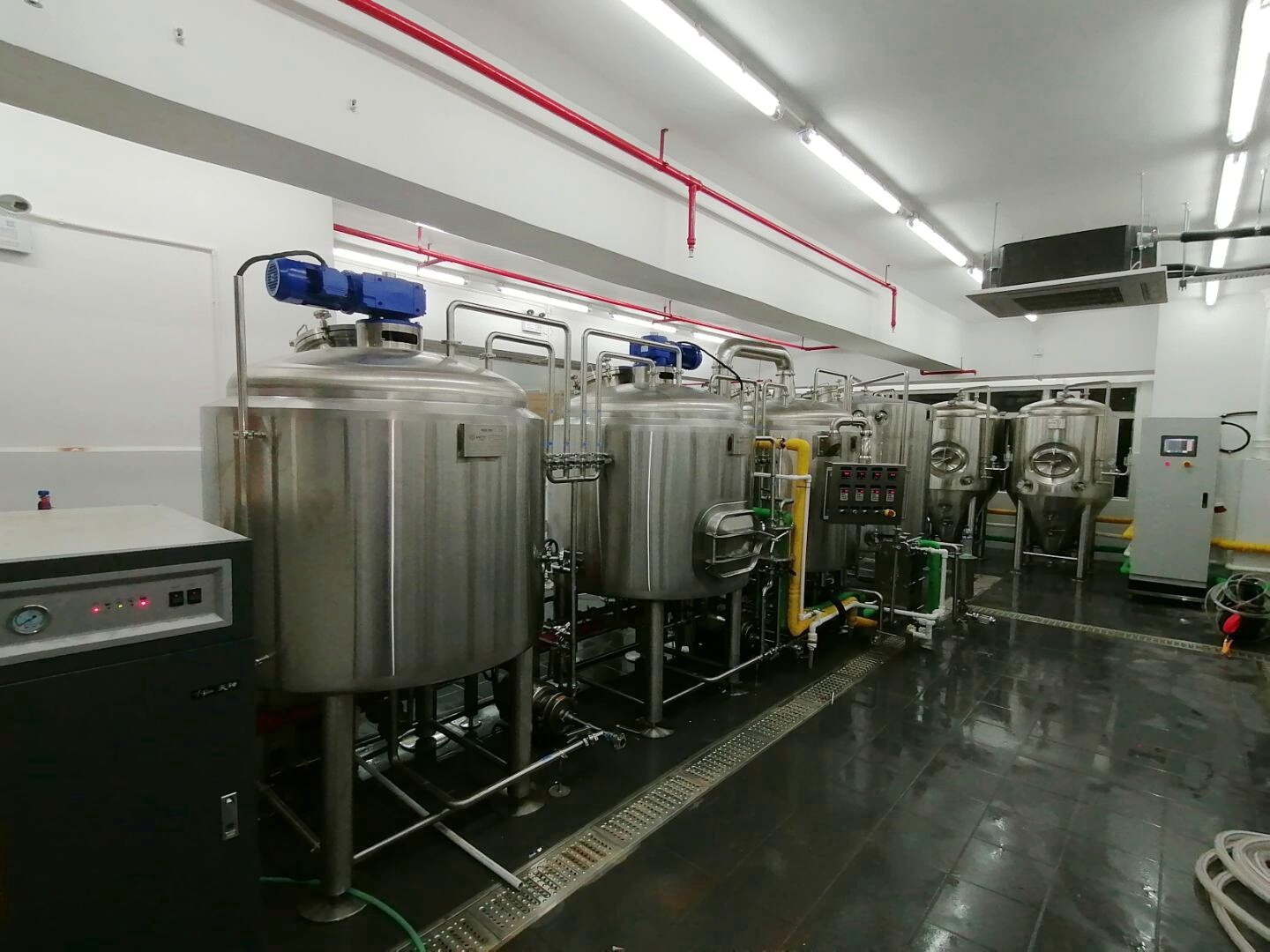

Brewhouse (1000L)	Three-vessel: dedicated Mash Tun (steam jacket) + Lauter Tun (rake, variable speed, grain plow, sparge ring, under-back/grant) + Kettle/Whirlpool (steam jacket, internal calandria optional).
Heat Recovery	HLT 2000L + CLT 2000L; two-stage HX (CLT then glycol); recovered hot water returns to HLT for the next brew.
Pumps/Valves	Two sanitary wort pumps (VFD); sparge pump; sanitary butterfly valves; hard-pipe wort routing; grant with level control.
Automation	Lauter rake torque control; kettle boil set-points; whirlpool timer; temperature PIDs; brewhouse recipe steps.

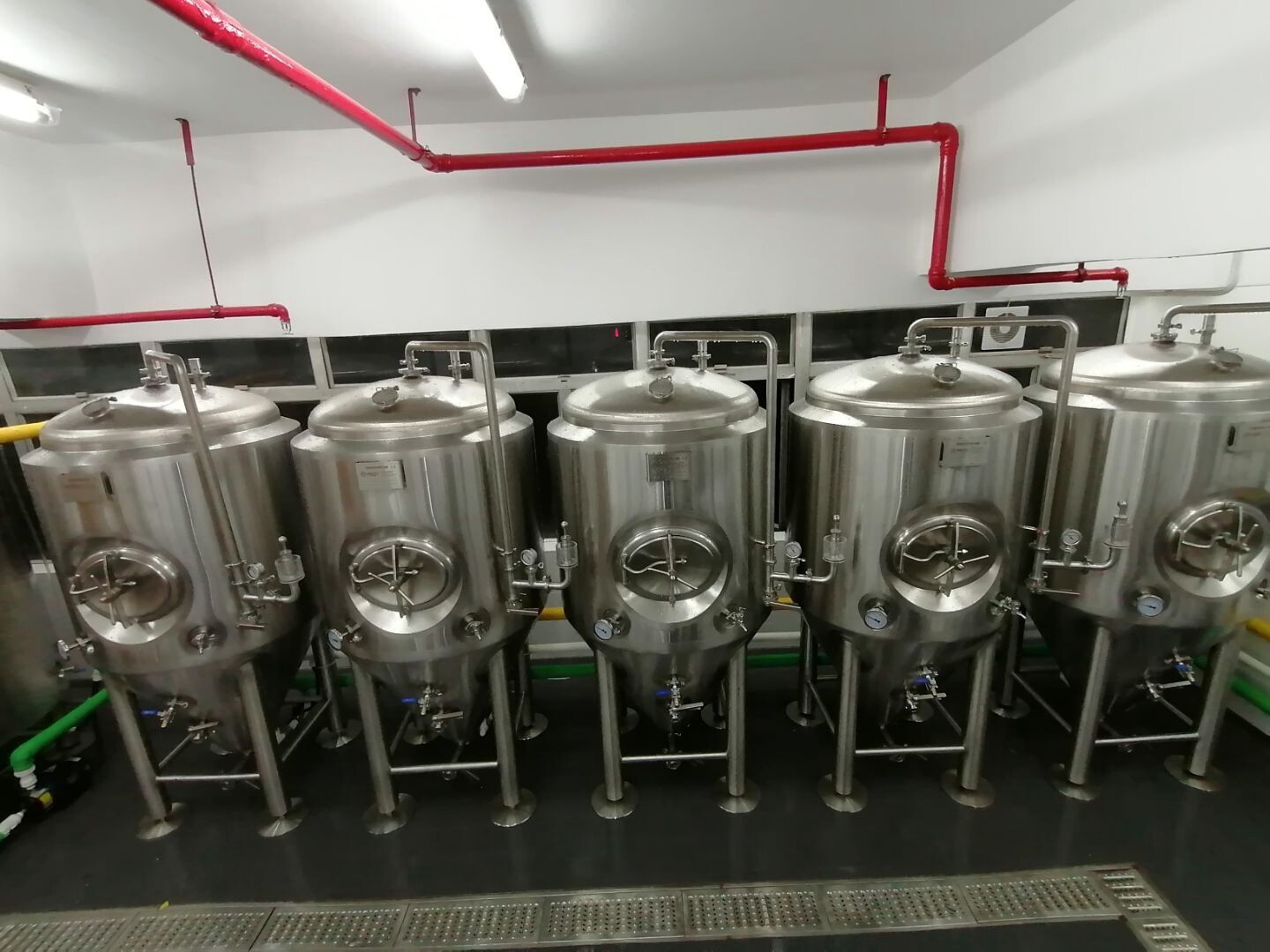

Fermentation	6 × 1000L CCTs with dual jackets; PRV, sample, CIP, carb stone port; pressure 2–3 bar; manway top/side per layout.
BBT/Serving (Opt.)	2 × 1000L BBTs, pressure-rated, with carb stone and rotating racking arm for bright beer.
Glycol Plant	3000L insulated tank; 10 HP chiller or 2 × 5 HP; dedicated CCT/BBT loops; glycol filters; -1 ~ -5 °C.
CIP Station	100 + 100 L skid with 5 kW heater; spray-ball mapping sheet provided; quick-connect hoses.
Controls	Semi-auto panel with PLC option; temp probes on all vessels; flowmeter; DO kit (optional) post-HX.
Boiler	Steam source: gas or electric per site; condensate return package to improve efficiency.
Packaging	Counter-pressure filler (bottle/can), keg washer-filler 2+1 head; inline filter housing (cartridge/DE optional).
Throughput	3–4 brews/day achievable with trained crew; 1,000 L/brew ⇒ 3,000–4,000 L/day.
Compliance	CE electrical, food-grade elastomers, pressure relief certified; documentation pack provided.

LD BREWERY EQUIPMENT

Feel freel to tell us all your ideas, Such as production capacity, room area, beer taste, budget, etc, Craft beer Brewery will be customized accordignly.
